Pipe Relining Rankin Park
Pipe relining in Rankin Park fixes a split or root-damaged drain by curing a new tube inside the old one, with no trench across the garden. Once a camera run has measured the damage, you get a fixed figure up front, and booking starts with one call to (02) 4093 0558.
Where this fits. Your plumber in Rankin Park clears lines through the blocked drains service. This page picks up once the video shows broken pipe rather than a simple choke.
Licensed plumbers and gas fitters · NSW Lic. 359278C
Last updated September 2026
How do you know it is past clearing?
The camera footage settles that call before anyone commits to a repair. Signs that point to relining instead of another clear:
- Split clay lengths where roots return to the same openings after every clear
- A sagged section where the pipe has settled on the ridge fall, letting water and silt sit in the dip
- More than one drain slowing at the same time after previous clears, which points to the main run rather than a fixture
- Water rising and dropping slowly in the gully trap between uses, a sign the line is holding flow it should be carrying away
Where the footage shows sound pipe with a one-off choke, jetting on the drain jetting page is the quicker answer and the kinder one on the price.
How does relining repair the pipe from inside?
The method leaves the garden, the paths and the driveway exactly where they are:
- 01
Measure on video
A CCTV drain inspection marks each crack, the pipe diameter and the length that needs covering.
- 02
Scour it clean
Water jetting takes roots, grit and scale off the wall, giving the resin bare clay to grip.
- 03

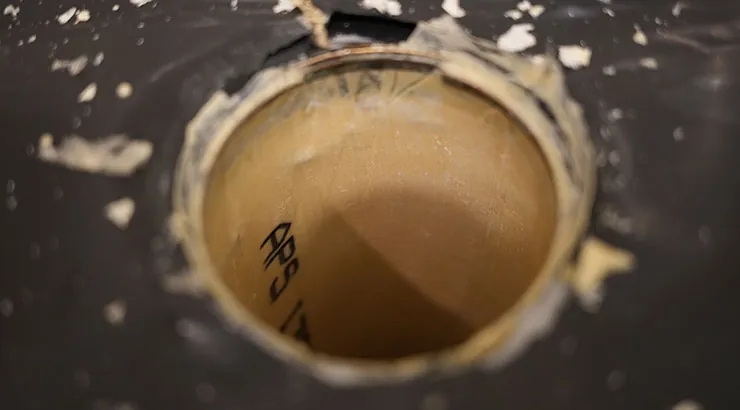

Set the new tube
A felt sleeve wet with resin goes in through an opening, and an inflated bladder holds it hard against the clay.
- 04
Harden and check
After the resin cures, a second camera pass proves the repair runs end to end, and both recordings are yours.
What drives the price of a relining job?
"They were very understanding of my situation, with a work around for my pipe issues, which ended up being a fraction of the cost than previous quotes from another company." Sarah
A relining figure is set by metres of liner first:
- How much of the run the camera shows as cracked, since one bad joint and three metres of fractured line are different jobs
- The width of the pipe and the number of bends the sleeve has to travel through
- How much root and scale has to come off the wall first
- Whether there are openings at both ends of the damaged length or only one
We provide up-front, honest quotes that will always match the final price, should you decide to go ahead.
On a repair, that means the figure is fixed from the footage, before any sleeve is cut to length.
Why the ridge is hard on old pipe
The soil moves, and old joints feel it
Those cracks are an open door to the bush
Gardens worth keeping
When We're Not the Right Call
A liner needs a pipe with its form intact. A run that has fallen in completely, where the camera cannot pass through at all, is an excavation job and gets quoted as one. If the camera reaches the junction and the crack is on the public main, that pipe belongs to Hunter Water and they fix it.
Questions About Relining, Answered
Can every cracked drain in Rankin Park be relined?
A cracked or root-damaged clay line can take a liner if it has not lost its form and the camera can travel its length. Pipe that has caved in needs digging instead, and the video tells you which one you have before you commit to anything.
Does relining cost less than replacing the section with new pipe?
It can, on established blocks, because the paths, lawn and driveway stay where they are and nothing has to be rebuilt afterwards. The camera run confirms how many metres need a liner, and that length drives the fixed figure you approve.
Do roots get back into a relined line near the bushland edges?
Once cured, the liner forms one smooth tube over the old joints, so the openings roots used are closed on your side of the connection. The bush that pushed them in the first place is still there, which is why the line gets camera-checked after the liner cures.
Do you reline stormwater lines as well as sewers?
Yes. Stormwater runs that have cracked on the ridge falls can be relined the same way, and the method avoids digging trenches across sloping yards. The stormwater drains page covers clearing and grading on those lines in full.
